| WHAT THIS DEVICE IS CAPABLE OF |
|---|
1. Gets you notified personally once there is any tampering attempt
(and without annoying your neighbors)

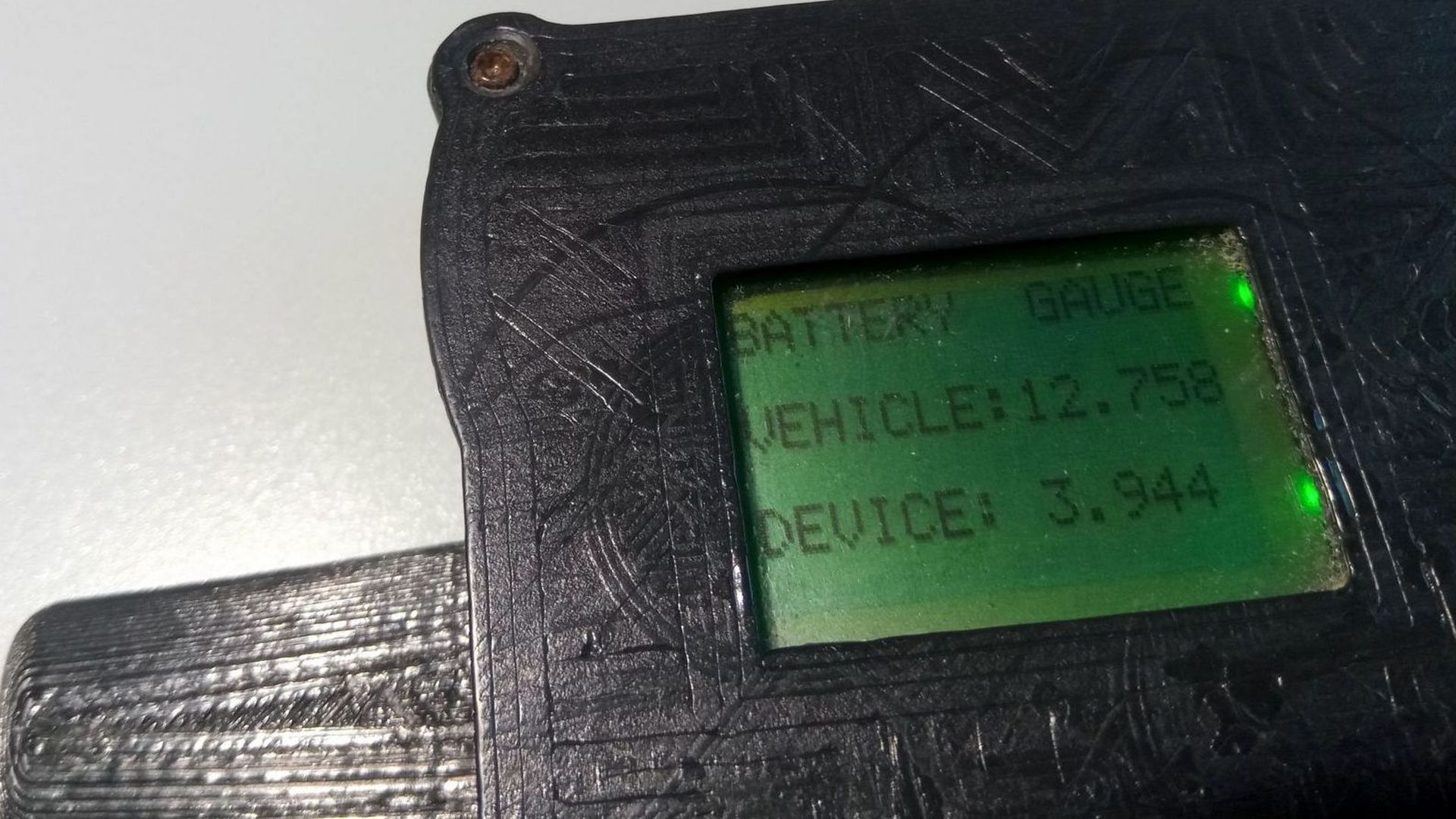

2. Keeps track of battery level both remotely and locally
3. Monitors engine state and shows RPM (given it's running) *
4. Monitors the vehicle interior temperature
5. Starts / stops engine remotely while preserving the alarm state *
6. Enables / disables A/C remotely / auxiliary power
7. Long term parking battery charging whith a threshold preset *
8. Employs turbo timer with an ajustable delay *
9. Rich telemetric capabilities
10. Employs an optional Auto Arm Feature When Left Unattended
11. Up to 1000 Meters Effective Radio Range (using RFM23BP module)
12. Intermediate HMAC values are saved within a dedicated EEPROM (and thus preserved even over a powercut)
2. Keeps track of battery level both remotely and locally
3. Monitors engine state and shows RPM (given it's running) *
4. Monitors the vehicle interior temperature
5. Starts / stops engine remotely while preserving the alarm state *
6. Enables / disables A/C remotely / auxiliary power
7. Long term parking battery charging whith a threshold preset *
8. Employs turbo timer with an ajustable delay *
9. Rich telemetric capabilities
10. Employs an optional Auto Arm Feature When Left Unattended
11. Up to 1000 Meters Effective Radio Range (using RFM23BP module)
12. Intermediate HMAC values are saved within a dedicated EEPROM (and thus preserved even over a powercut)

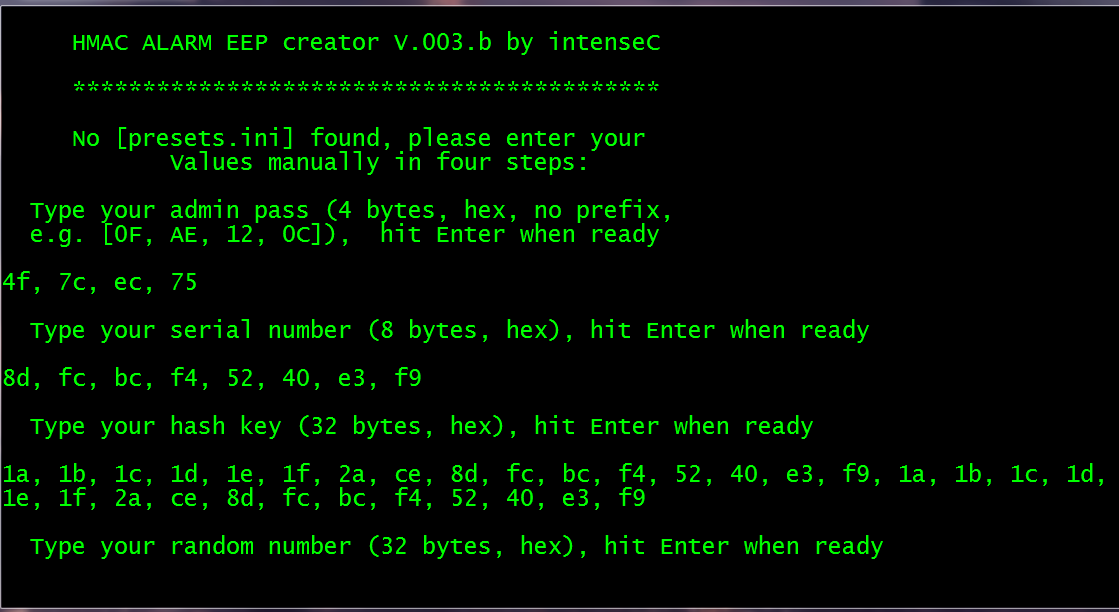

Security Keys
Serial number, User Password, Security Key and Random Number
are all stored in EEPROM. I wrote an application to put these togheter and to
compose both binary and Intel hex files that are then ready to be programmed
to an AVR chip.
HMAC briefly explained
I'm not going to dive deep into cryptography concepts,
there are plenty info in Google on it, yet I'll explain some
basics and describe the way
I had it implemented in my design.
SI4432 & RFM23BP RF Modules
This device employs an SI4432 Radio Module, its effective range within densely populated areas is quite limited and seldom extends 100 meters. RFM23BP, however, while being an extension to SI4432, allows this range to be increased drastically.* HMAC PROTECTED *
256 bit Assymetric key / True Dialogue System
ENHANCED RANGE
Silent Alarm with Optional Loud Mode Avialable
REMOTE ENGINE START *
Allows cars' interior to cool down on a sunny day

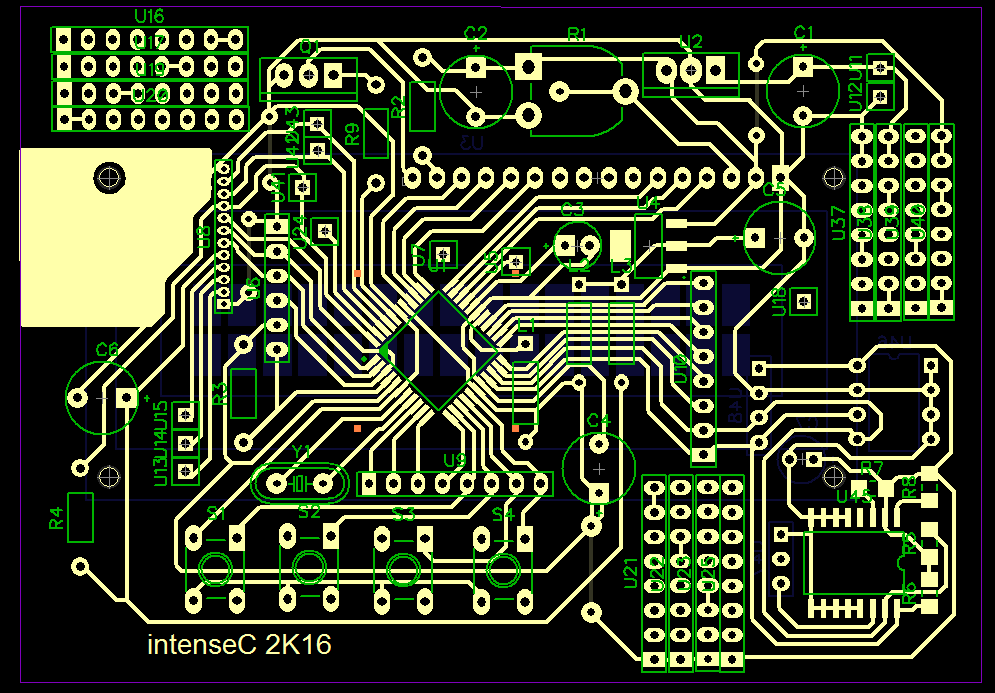

* RF Control Unit *
* Some Telemetry *
* Dissassembled *
EEPROM Utility

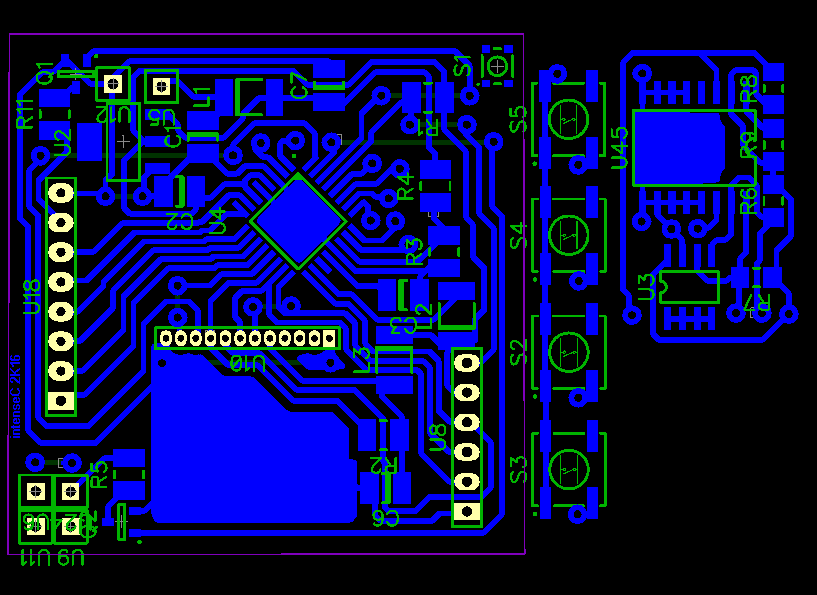

KeyFob FW

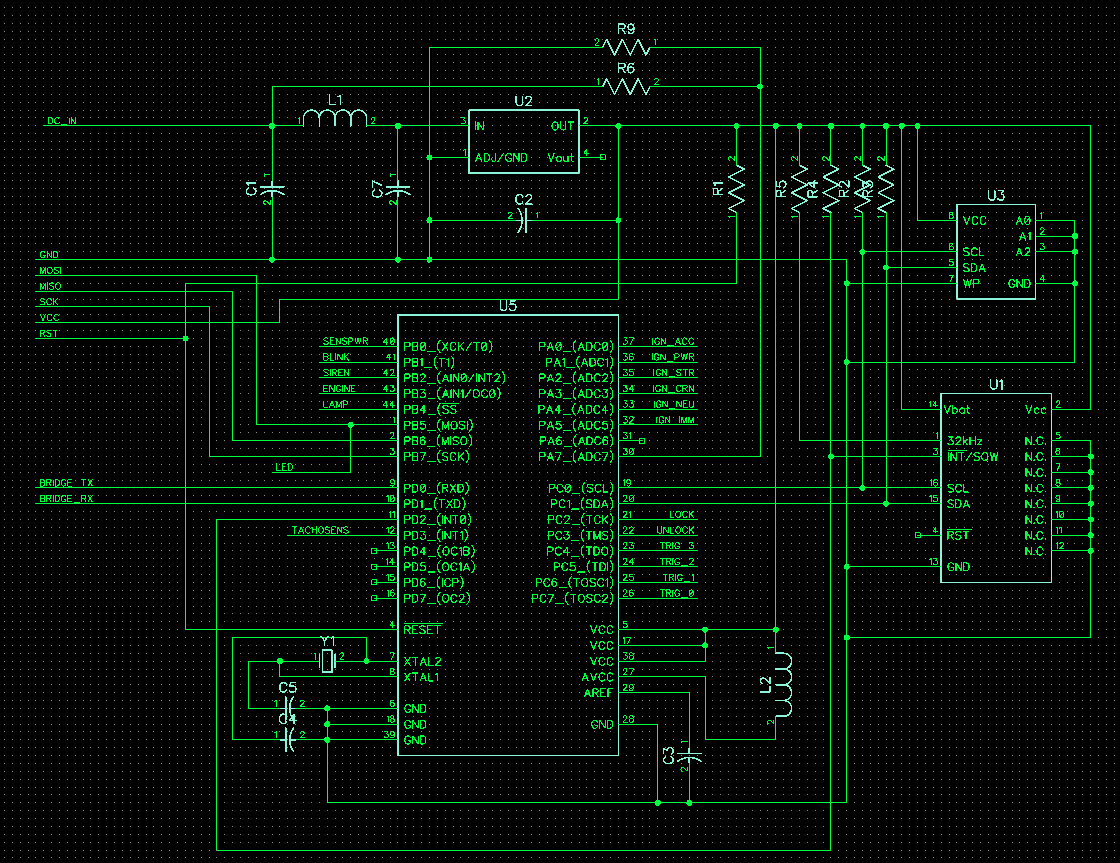

Car FW
